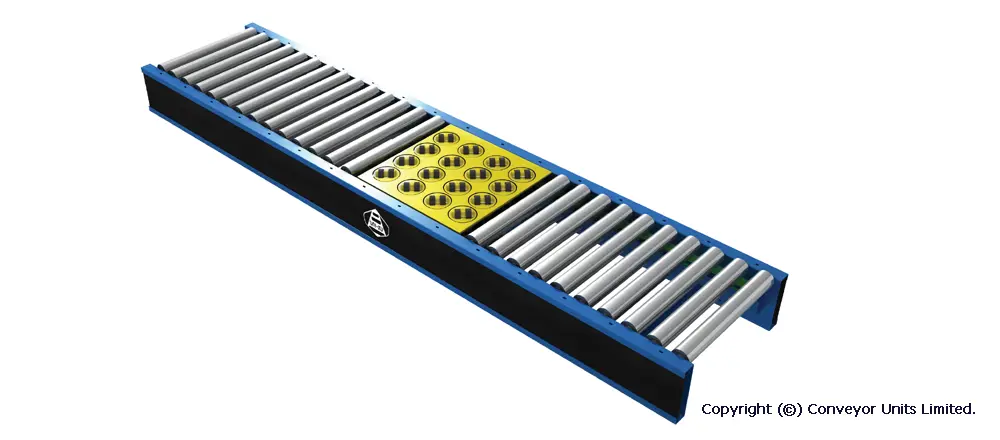

Overview
- ‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
- ‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
- Independently driven from a 0.37 kW SEW motor, to give either 60 metresor 110 metres per minute maximum linespeed over sorter wheels.
- Multiple operation: ‘straight ahead’, ‘switch left’ and ‘switch right’.
- Minimum product size 200mm x 200mm.
- Pneumatically operated 45 degree switching angle.
- Normally used in conjunction with a 45 degree mitre section. Other options are available
- 50kg maximum product weight per switch sorter.
- We recommend that an inverter is fitted to the gearbox to enable fine tuning of the speed that will be required to suit your application.

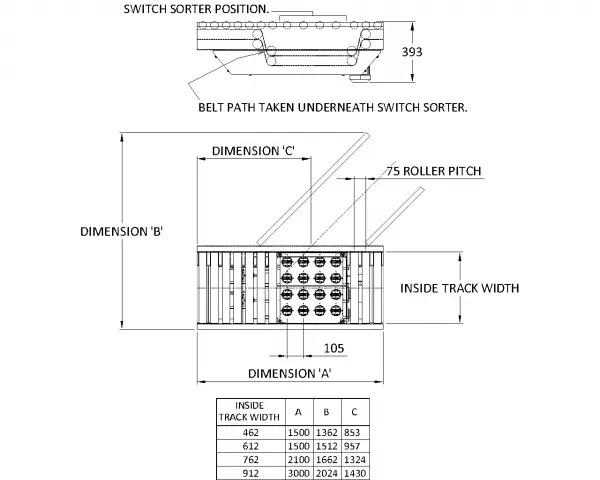

- Standard widths available: 462mm, 612mm, 762mm and 912mm.
Technical Information
45° divert unit capable of switching upto 50 packs per minute.
